SPINDLES / BOLTS
- Cold rolled trapezoidal SPINDLES according to DIN 103 since TR 8×1, 50 to TR 100×12 stock right and left hand and single or multistarted.
- Tolerance for flank diameter (7e) and (4h) for external diameter.
- Standard material are C15 or similar, C45, inox AISI 304 (1.4301) and AISI 316 (1.4401).
- Any other dimension (till 12 mts) and material can be also produced.
- Special BOLTS are also produced on request.
NUTS
- According to DIN 103 with tolerance 7H.
- Hexagonal shape in F-212 (9SMnPb28) or similar steel.
- Bronze 88/12 (Cu Sn 12) cylindrical shape.
- Bronze 88/12 (Cu Sn 12) cylindrical shape with flange.
- We have constant stock from TR 12×3 to TR 60×9.
- Other dimensions, shapes and materials can be produced on request.

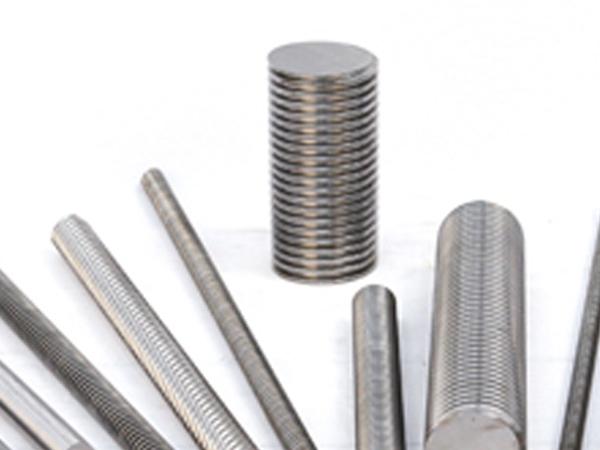

Spindles with trapezoidal thread
s/DIN 103 - 1 entry
Smooth bronze nut with trapezoidal thread
s/DIN 103 - 1 entry
Flange bronze nut with trapezoidal thread
s/DIN 103 - 1 entry
Nut flange brass cap with trapezoidal thread
s/DIN 103 - 1 entry
Hexagon nut with trapezoidal thread
s/DIN 103 - 1 entry
Material storage
Assorted materials
Cold rolled spindles, trapezoidal nuts and special bolts
Finished product. Bolts
Precision rolled spindles and trapezoidal nuts
Wide variety of sectors
Assorted materials
Trapezoidal nuts
Assorted materials
High precision cold rolled spindles
Own product
High production capacity
Need more information?
If you have any doubts or need a trapezoidal spindle with customised features, do not hesitate to contact us. Our team is at your disposal to help you choose the best option for your project. As a market leader and manufacturer of spindles, we are committed to your satisfaction.
