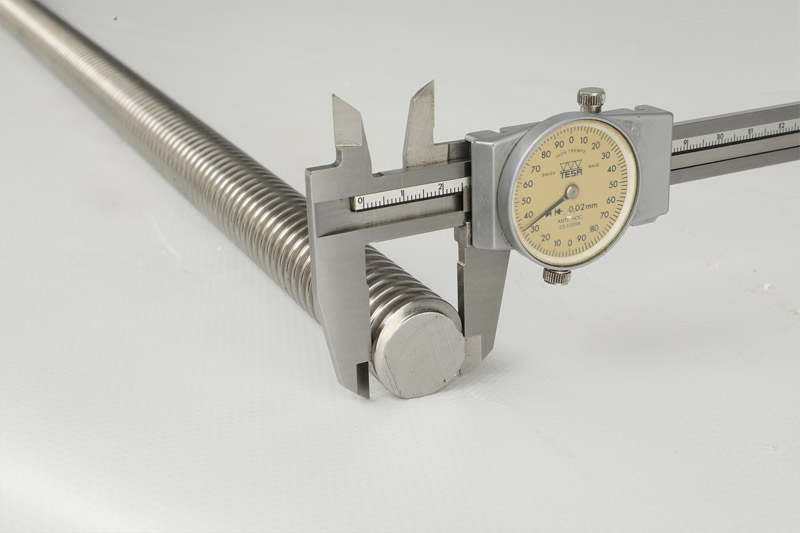

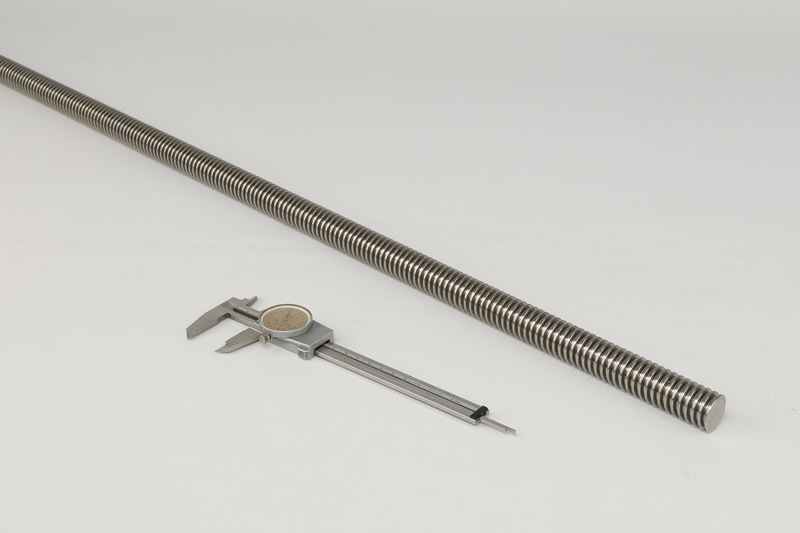

The TR 100×12 Right Trapezoidal Spindle is a mechanical component designed to transmit linear movements in a precise and efficient way in highly demanding industrial systems. With a nominal diameter of 100 mm and a pitch of 12 mm, this spindle complies with DIN 103 standards, guaranteeing durability, strength and reliability. Made of carbon steel (C15/C45), it is ideal for standard applications requiring high load capacity and precision. As a spindle manufacturer, we offer products tailored to the specific needs of each customer.
Technical Characteristics
- Thread type: Trapezoidal (TR)
- Nominal diameter (d): 100 mm
- Pitch (P): 12 mm
- Thread direction: Right (RIGHT)
- Standard: DIN 103
- Material: Carbon steel (C15/C45)
- Finish: Machined surface to ensure precision and wear resistance.
Uses and Applications
The TR 100×12 Right Trapezoidal Spindle is ideal for a wide range of industrial applications requiring precise linear transmission and high load capacity. Notable uses include:
- High capacity machine tools.
- High precision linear positioning systems.
- Manual and automatic linear actuators.
- Lifting and handling equipment for heavy loads.
- Industrial sectors that demand durable and reliable components.
Our experience as a spindle manufacturer allows us to offer advanced solutions, such as trapezoidal and trapezoidal spindles, designed to meet the most stringent demands of the industry.
Advantages
- High precision: Manufactured to DIN 103 standards, ensuring smooth and controlled movements.
- Durability: Constructed of carbon steel (C15/C45), ideal to withstand demanding applications and extend its service life.
- Reliability: Designed for highly demanding industrial systems.
- Versatility: Compatible with various mechanical configurations and nut systems designed for trapezoidal spindles.
Available Options
- Material:
- Carbon steel (C15/C45): Ideal for standard and high load applications.
- Lengths:
- Standard length of 1 meter, customizable upon request.
- Compatible nuts: Available in bronze, technical plastics or steel, adapted to the specific needs of the project.
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter (in millimeters) | 100 mm |
| Thread pitch (in millimeters) | 12 mm |
| Standard length | 1 meter (others on request) |
| Thread Direction | Right Hand (RH) |
| Material | Carbon steel (C15/C45) |
| Manufacturing standards | DIN 103 |
Need more information?
If you have any doubts or need a trapezoidal screw with customized features, do not hesitate to contact us. Our team is at your disposal to help you choose the best option for your project. As a market leader and spindle manufacturer, we are committed to your satisfaction.
